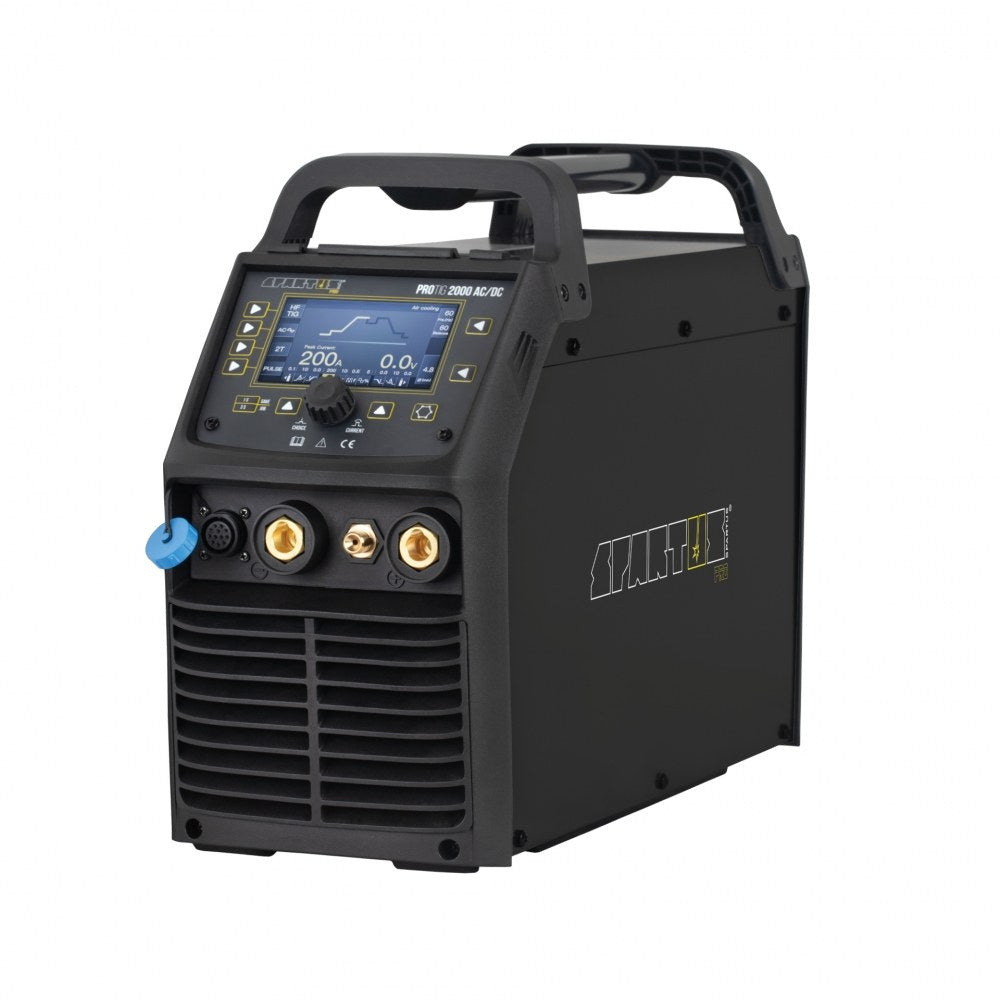

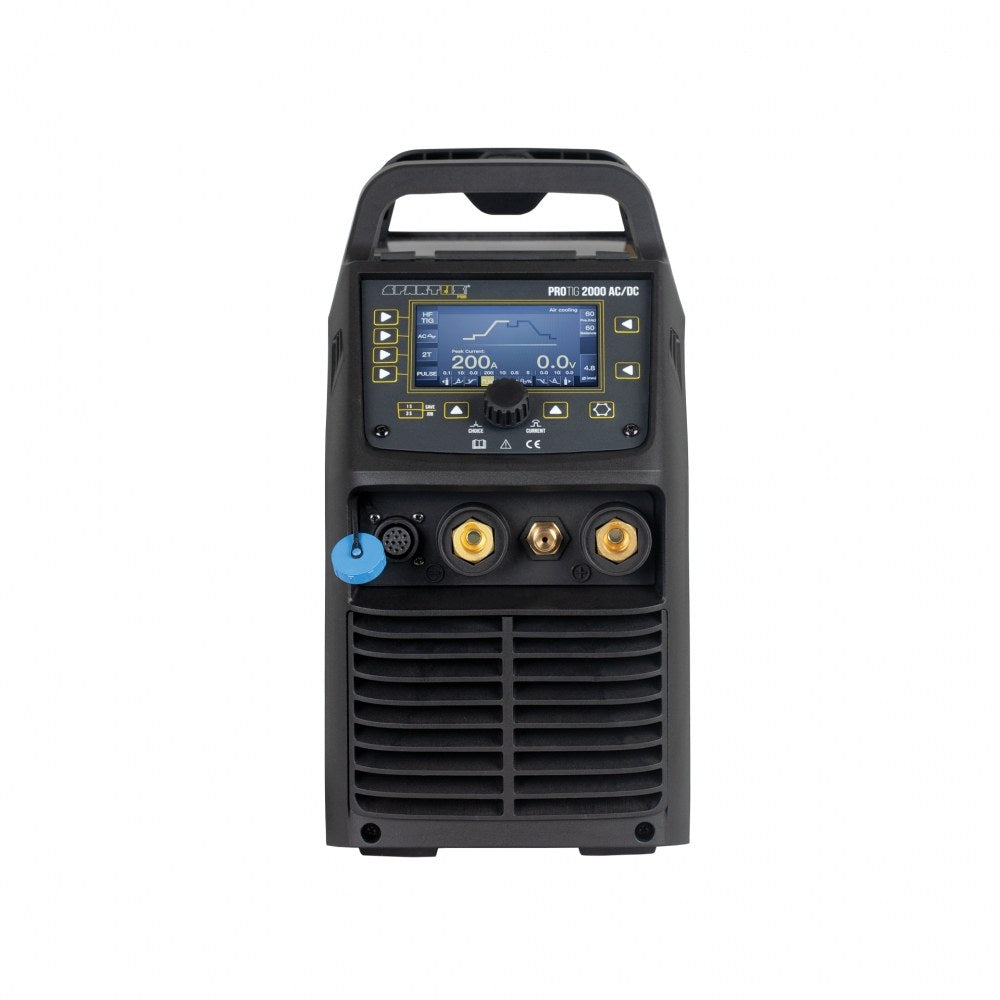

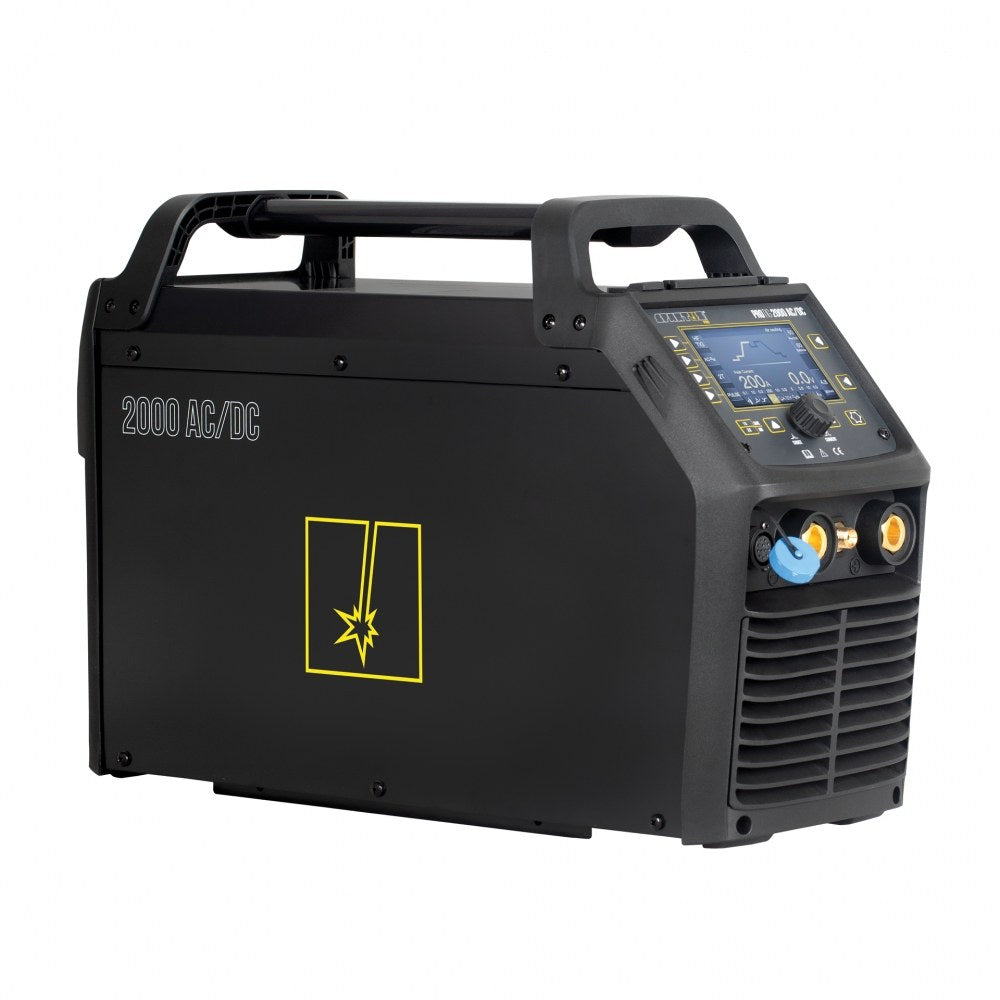

Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m
Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m
Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m
Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m
Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m
Spartus

Spartus ProTIG 2000 AC/DC SPP 17 4B X - 4m

Sale price€1.568,76 EUR

SPARTUS® ProTIG 2000 AC/DC offers versatile TIG AC and DC welding options with both High Frequency (HF) and Lift ignition methods. The pulse welding feature makes it an excellent choice for welding very thin sheets and aluminum, guaranteeing precise welds.

Features:

  • AC waveform selection: Rectangular, sinusoidal, triangular - adjust your welding parameters to suit your needs.
  • Adjustable parameters: AC balance, current frequency and pulse frequency allow excellent control.
  • Memory channels: 10 channels for the most common settings speed up work.
  • Flexible cooling: Use of gas or integrated cooler as needed.

SPARTUS® ProTIG 2000 AC/DC is a reliable and powerful tool that is well suited for professional welding projects.



Technical data: SPARTUS® ProTIG 2000 AC/DC

  • Input: ~1× 230V ± 10% 50 / 60 Hz
  • TIG-hitsausvirta: AC: 10 - 200A / DC: 3 - 200A
  • TIG power cycle: 60%
  • Gas pre-flow: 0.1 - 2 s
  • Gas afterflow: 0 - 10 s
  • Curve rise: 0 - 10 s
  • Curve descent: 0 - 10 s
  • Pulse welding: Yes
  • Pulssiamppeerit: DC: 3 - 200A / AC: 10 - 200A
  • Pulse Width: 5 - 95%
  • Pulse frequency: 0.5 - 999 Hz
  • AC frequency: 50 - 250 Hz
  • AC waveforms: Rectangular, sinusoidal, triangular
  • AC balance: 10 - 99
  • 2T/4T control: Yes
  • Spot welding: Yes
  • Kaarisytytys: Lift / HF
  • Control options: Wireless foot pedal, control on the burner (UP&DOWN), wired foot control, potentiometer on the handle, wireless remote control
  • MMA welding current: 10 – 200A
  • Arc Force: Yes
  • Hot Start: Yes
  • Discharge voltage: 10V
  • Virranculotus: AC: TIG 20.1 / MMA 28.7, DC: TIG 20.8 / MMA 30.2
  • Efficiency factor (cosφ): 0.99
  • Insulation class: H
  • Protection class: IP23
  • Paino: 13.2 kg
  • Mitat: 550 x 190 x 360 mm



Package includes:

  • ProTIG 2000 AC/DC -hitsauslaite

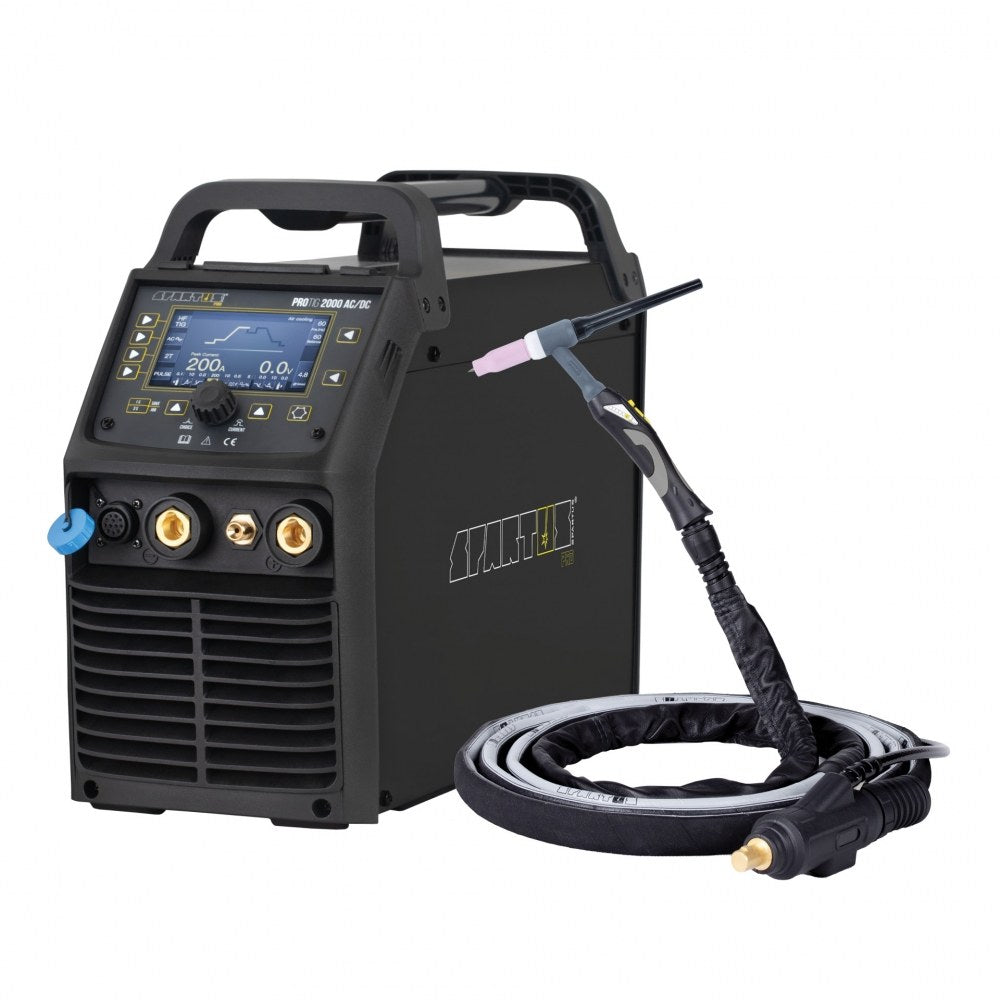

  • TIG torch SPARTUS® mini SPP 17 4B, length 4 m
  • TIG tool kit (consumables)
  • 3 m electrodipide
  • 3 m maasukat
  • Gas hose
  • Instructions
