ProTIG 2000W AC/DC SPP 20 4B X - 4m

Sale price€2.641,81 EUR

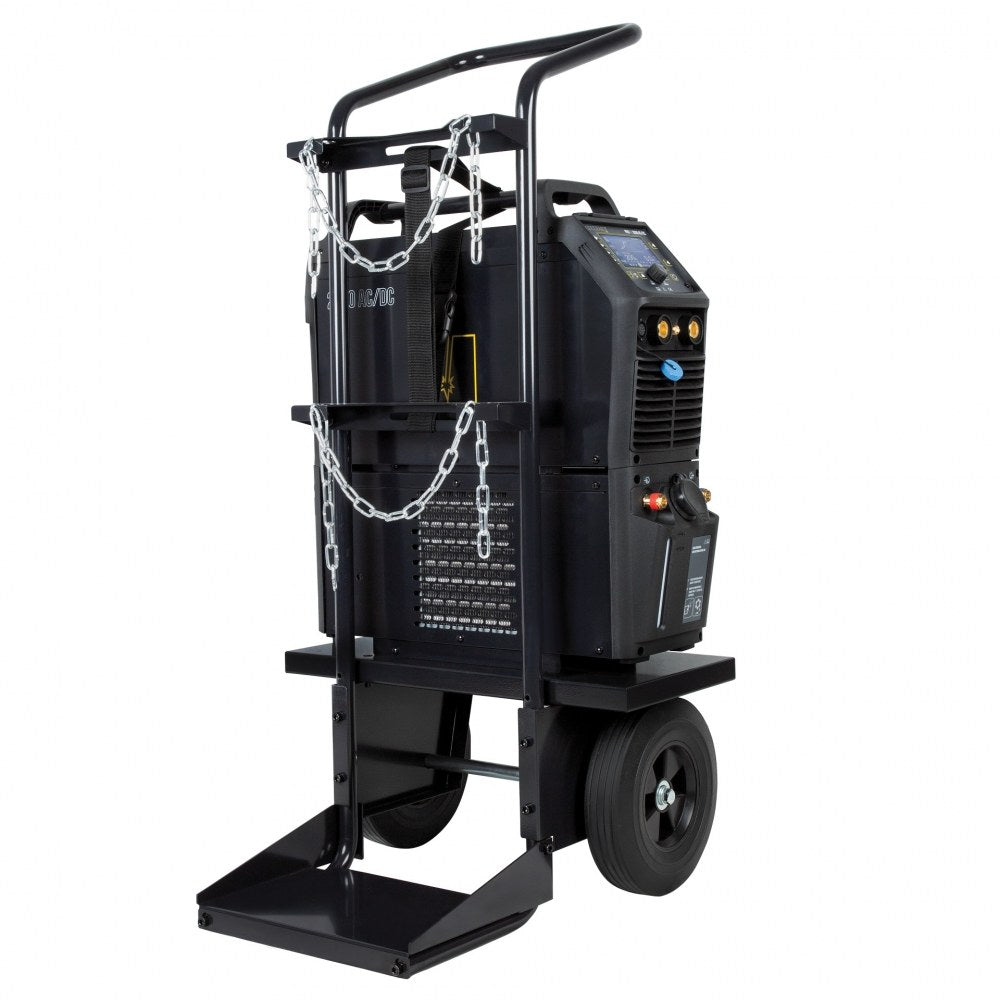

SPARTUS® ProTIG 2000W AC/DC is a high-quality, modern inverter welding device with an IGBT transistor that enables TIG AC/DC and MMA welding with a current of up to 200 A. The device works from a single-phase 230 V network and offers versatile welding possibilities.

TIG welding: The device has a selectable AC waveform (rectangular, sinusoidal, triangular) and a pulse welding feature, ideal for welding thin materials and aluminum. Adjustable parameters such as AC balance and pulse frequency allow excellent control over the welding process.

MMA welding: SPARTUS® ProTIG 2000W AC/DC also supports MMA welding, offering a Hot Start feature to ignite the electrode and an Arc Force control to control the intensity of the arc.

Memory channels: The device contains 10 memory channels, which make it easier to save settings and quickly restore them.

SPARTUS® ProTIG 2000W AC/DC is a multifunctional welding source that meets the needs of even the most demanding user in terms of precision, efficiency and duration.



Technical data: SPARTUS® ProTIG 2000W AC/DC

  • Input: ~1× 230V ± 10% 50 / 60 Hz
  • TIG-hitsausvirta: AC: 10 - 200 A / DC: 3 - 200 A
  • TIG power cycle: 60%
  • Gas pre-flow: 0.1 - 2 s
  • Gas afterflow: 0 - 10 s
  • Curve rise: 0 - 10 s
  • Curve descent: 0 - 10 s
  • Pulse welding: Yes
  • Pulssiamppeerit: DC: 3 - 200 A / AC: 10 - 200 A
  • Pulse Width: 5 - 95%
  • Pulse frequency: 0.5 - 999 Hz
  • AC frequency: 50 - 250 Hz
  • AC waveforms: Rectangular, sinusoidal, triangular
  • AC balance: 10 - 99
  • 2T/4T control: Yes
  • Spot welding: Yes
  • Kaarisytytys: Lift / HF
  • Control options: Wireless foot pedal, control on the burner (UP&DOWN), wired foot control, potentiometer on the handle, wireless remote control
  • Water cooler: Yes
  • Tank capacity: 4 l
  • MMA welding current: 10 - 200 A
  • Arc Force: Yes
  • Hot Start: Yes
  • Discharge voltage: 10 V
  • Power consumption:
    • AC: TIG 20.1 / MMA 28.7
    • DC: TIG 20.8 / MMA 30.2
  • Efficiency factor (cosφ): 0.99
  • Insulation class: H
  • Protection class: IP23
  • Weight: 43 kg
  • Mitat: 570 x 545 x 1120 mm



Contain.

  • ProTIG 2000 AC/DC -hitsauslaite
  • Cooling unit
  • Hypercoolant coolant
  • 2 wheel drive kit
  • TIG torch SPARTUS® mini SPP 20 4B, length 4 m
  • TIG tool kit (consumables)
  • 3 m electrodipide
  • 3 m work clip
  • Gas hose
  • Instructions

Check availability before ordering. Normal delivery time is about 5-8 working days
